Diamond cutting discs for dry and wet cutting

Diamonds – whether natural or synthetic – consist of carbon and are the hardest known material. Embedded in the appropriate bond, they perform the actual work when cutting, drilling, or grinding with a diamond tool. The quality, grain size, and concentration of the diamonds are therefore crucial for the performance of a diamond tool. Besides the diamonds themselves, the bond is also largely responsible for the tool's cutting performance. The hardness of the metal bond is matched to the hardness of the material being machined. The general rule is: Use a hard bond for soft and abrasive materials (e.g., asphalt, fresh concrete, sandstone) and a soft bond for hard materials (e.g., granite, hard clinker).

Diamond cutting disc TURMFLEX DS-Concrete

Specification

TURMFLEX DS-Concrete is a universal diamond cutting disc for unreinforced concrete, brick, and general building materials. Segmented disc, sintered in standard version, segment height 10 mm. Best price/performance ratio.

Applications

Concrete (unreinforced), bricks and general building materials.

Dimensions/mm

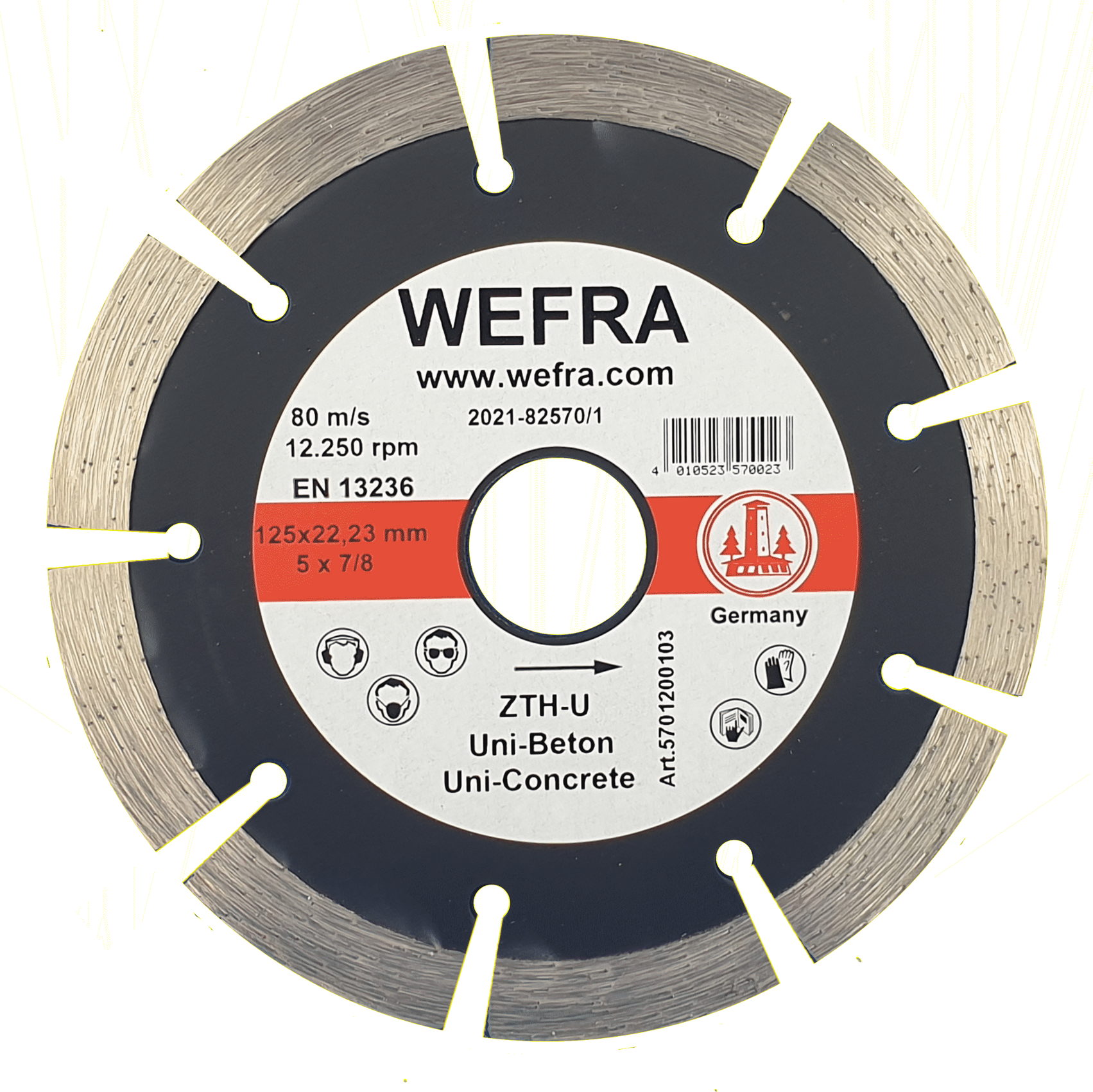

Diamond cutting disc ZTH-U

Specification

Universal diamond cutting disc for concrete and brick. Segmented disc, sintered, good service life and good cutting performance with varying materials. Segment height 10 mm.

Applications

Concrete and brick.

Dimensions/mm

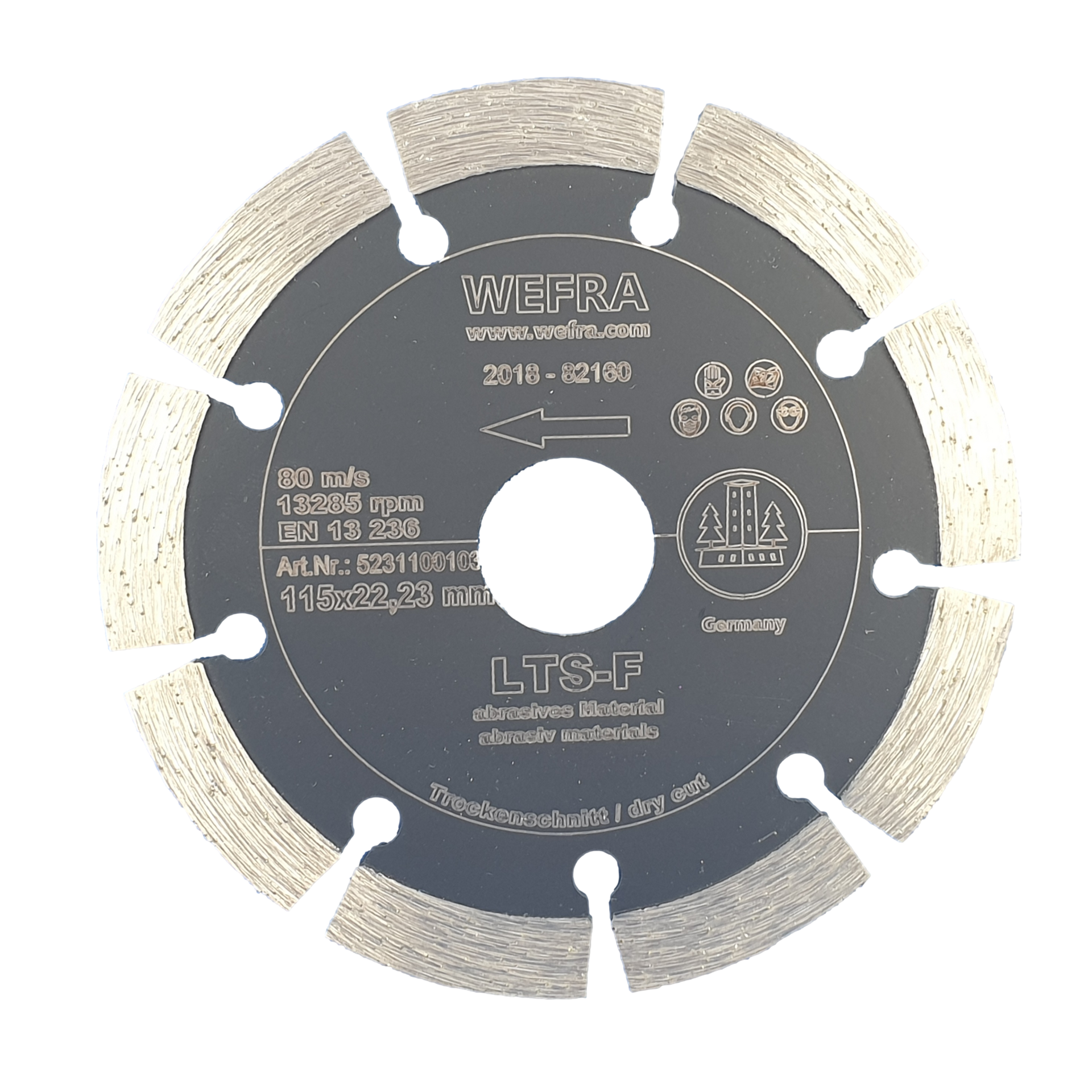

Diamond cutting disc LTS-F

Specification

Special cutting disc for roofing materials (concrete roof tiles, clay roof tiles), sandstone, plaster, screed, fresh concrete, slate. Segmented disc, laser-welded, good cutting performance and hard bond for abrasive materials. Segment height 10 mm. Proven professional quality.

Applications

Roofing materials (concrete roof tiles, clay roof tiles), sandstone, plaster, screed, fresh concrete, slate.

Dimensions/mm

Diamond cutting disc LTS-G

Specification

Segmented disc, laser-welded, excellent cutting performance and long service life on medium-hard natural stone and hard stone. Proven professional quality.

Applications

Natural stone and hard stone.

Dimensions/mm

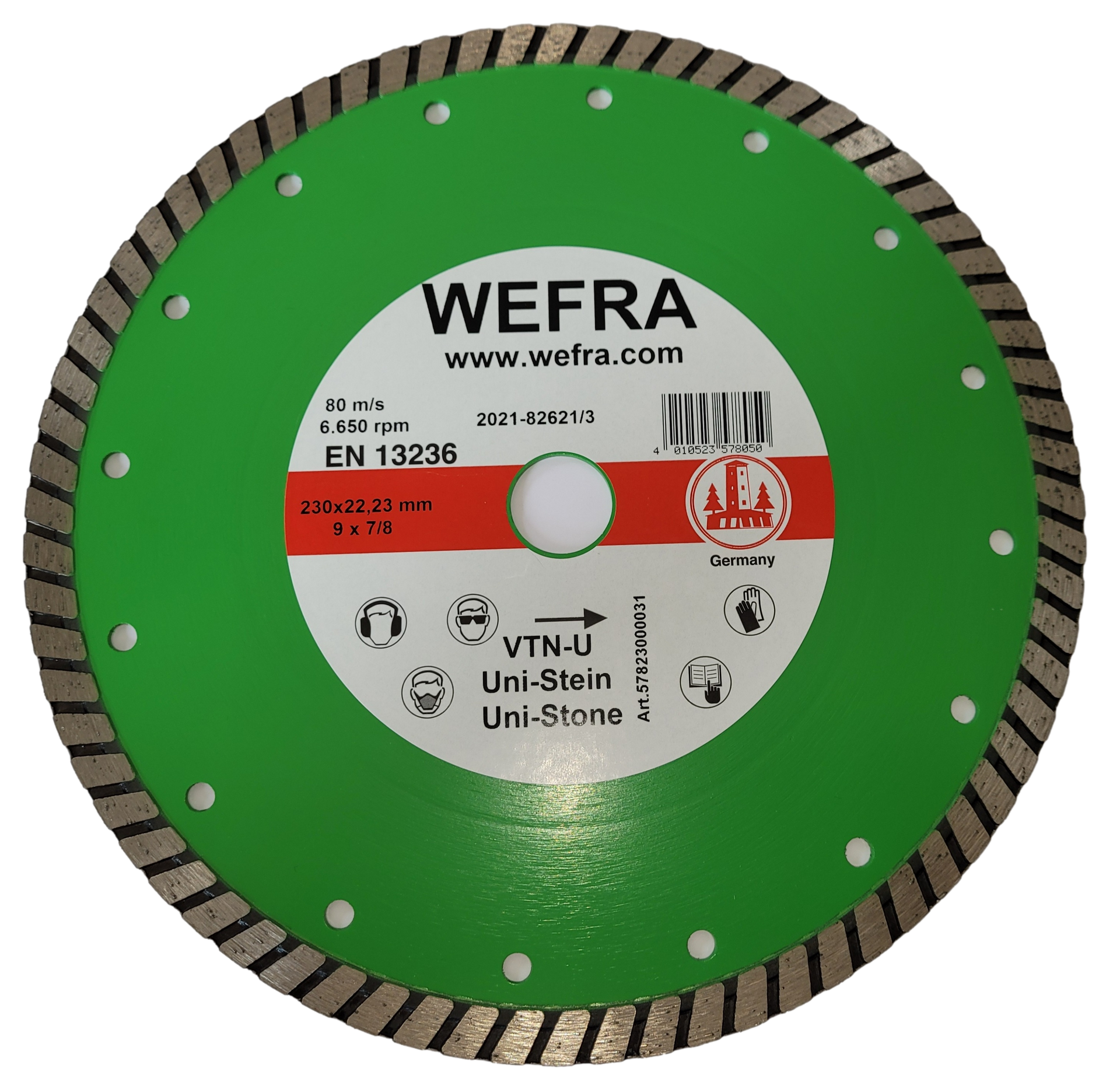

Diamond cutting disc VTN-U TURBO-Special

Specification

The professional cutting disc for natural and artificial stone, concrete, roof tiles, paving stones, and exposed aggregate concrete. Closed cutting edge, sintered, excellent cutting performance and service life. Segment height 10 mm. Proven professional quality.

Applications

Natural stone, artificial stone, concrete, roof tiles, interlocking paving stones, exposed aggregate concrete.

Dimensions/mm

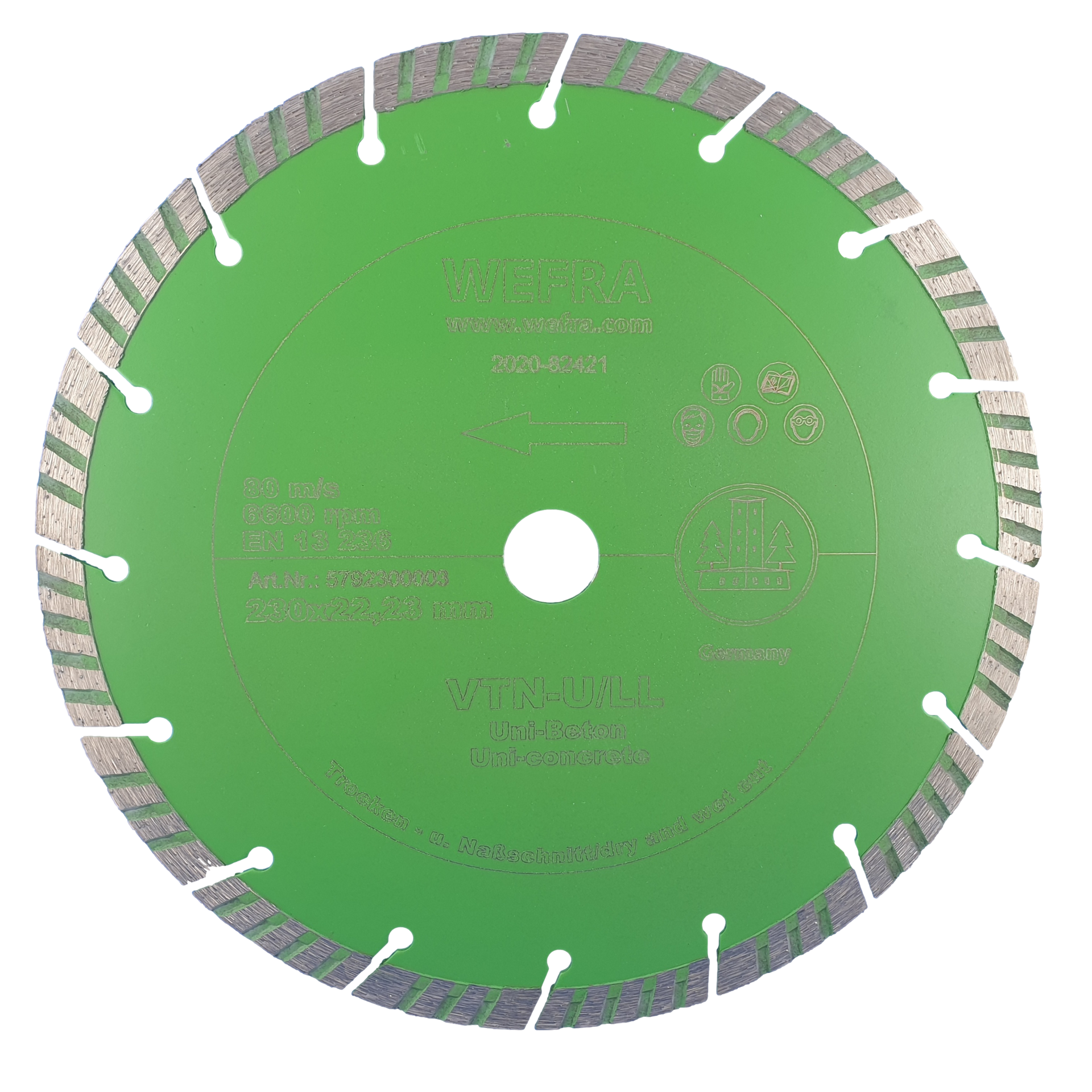

Diamond cutting disc VTN-U/LL

Specification

The ideal disc for road construction. Cuts bricks, clinker (not hard-fired), granite up to medium hardness, roof tiles, concrete (even reinforced concrete up to 8 mm bar thickness). Segmented disc, sintered, 10 mm TURBO segments.

Applications

Bricks, clinker (not hard-fired), granite up to medium hardness, roof tiles, concrete (also reinforced up to 8 mm bar thickness).

Dimensions/mm

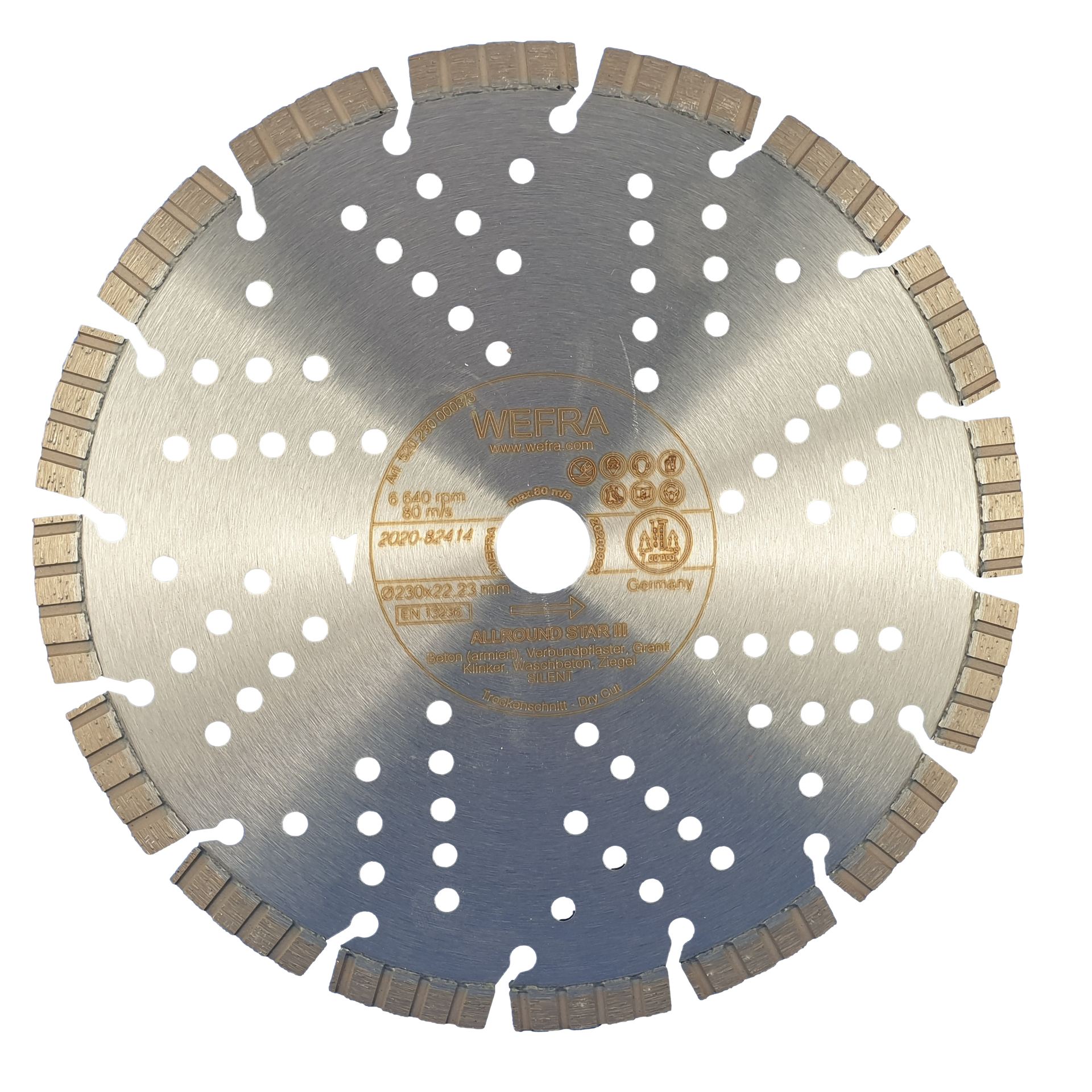

Diamond cutting disc ALLROUND STAR III

Specification

Our all-rounder cuts concrete (even heavily reinforced concrete), granite, exposed aggregate concrete, brick, natural stone, and ductile iron pipes. The WEFRA ALLROUND STAR III is a laser-welded, high-performance diamond cutting disc with 10 mm high TURBO segments. It operates noise-reduced and self-cooling in dry cutting, the perforated stem blade offers a very long service life and excellent cutting performance. Top quality.

Applications

Concrete (including heavily reinforced concrete), granite, exposed aggregate concrete, brick, natural stone and ductile cast iron pipes.

Dimensions/mm

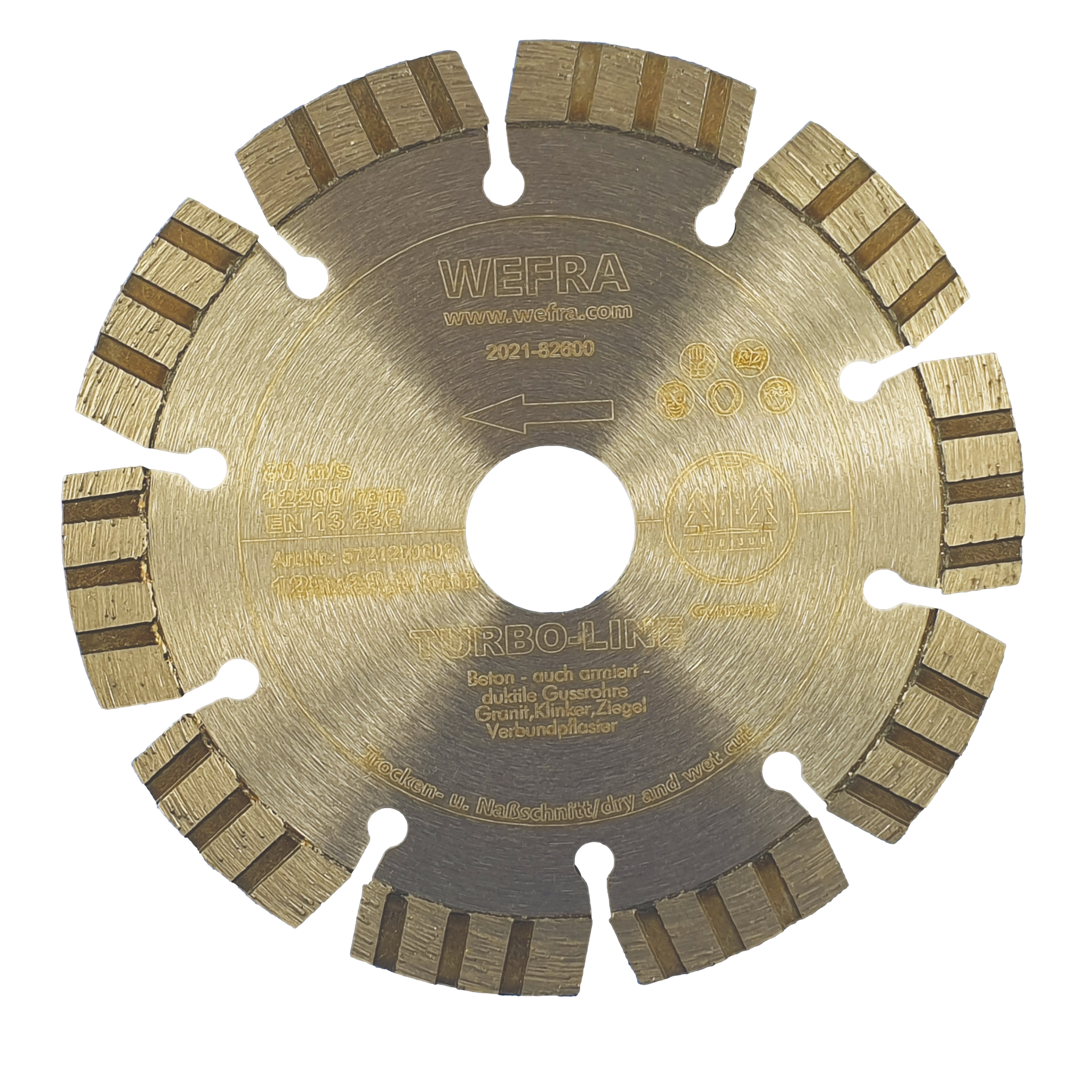

Diamond cutting disc TURBO-Line

Specification

The WEFRA TURBO-Line is ideally suited for old concrete, concrete (including heavily reinforced concrete), concrete pipes, ductile iron pipes, granite (including Nero Impala), hard and soft clinker bricks, interlocking pavers, exposed aggregate concrete, and bricks. The diamond cutting disc is equipped with laser-welded TURBO segments.

Applications

Old concrete, concrete (also heavily reinforced), concrete pipes, ductile cast iron pipes, granite (also Nero Impala), hard and soft clinker bricks, interlocking paving stones, exposed aggregate concrete and bricks.

Dimensions/mm

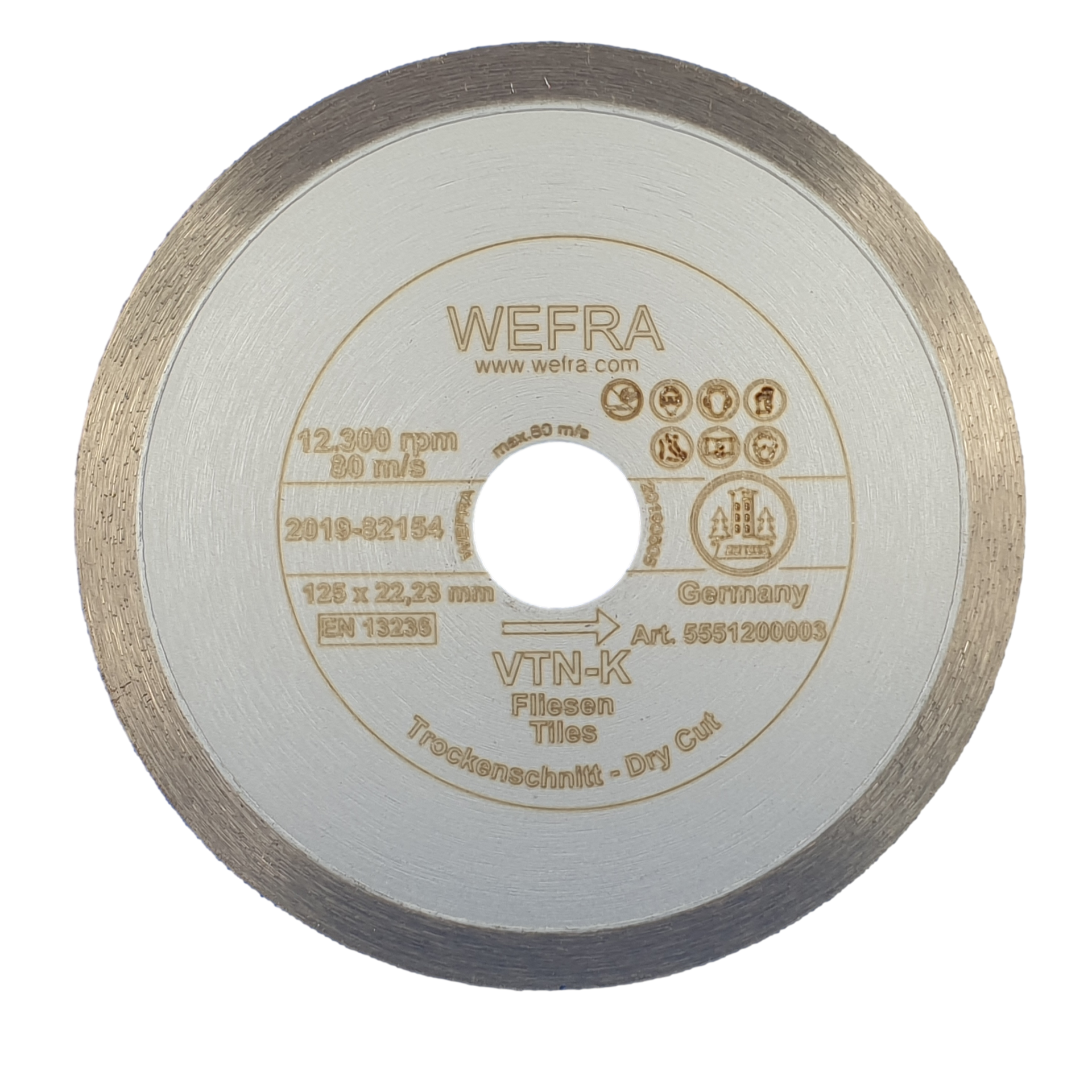

Diamond cutting disc VTN-K

Specification

The VTN-K sintered diamond cutting disc features a closed cutting edge and is ideal for cutting tiles, thin natural stone slabs, and ceramics. It offers excellent durability for fast and clean cuts. The segment height is 5 mm. Proven professional quality.

Applications

Tiles, thin natural stone slabs, ceramics.

Dimensions/mm

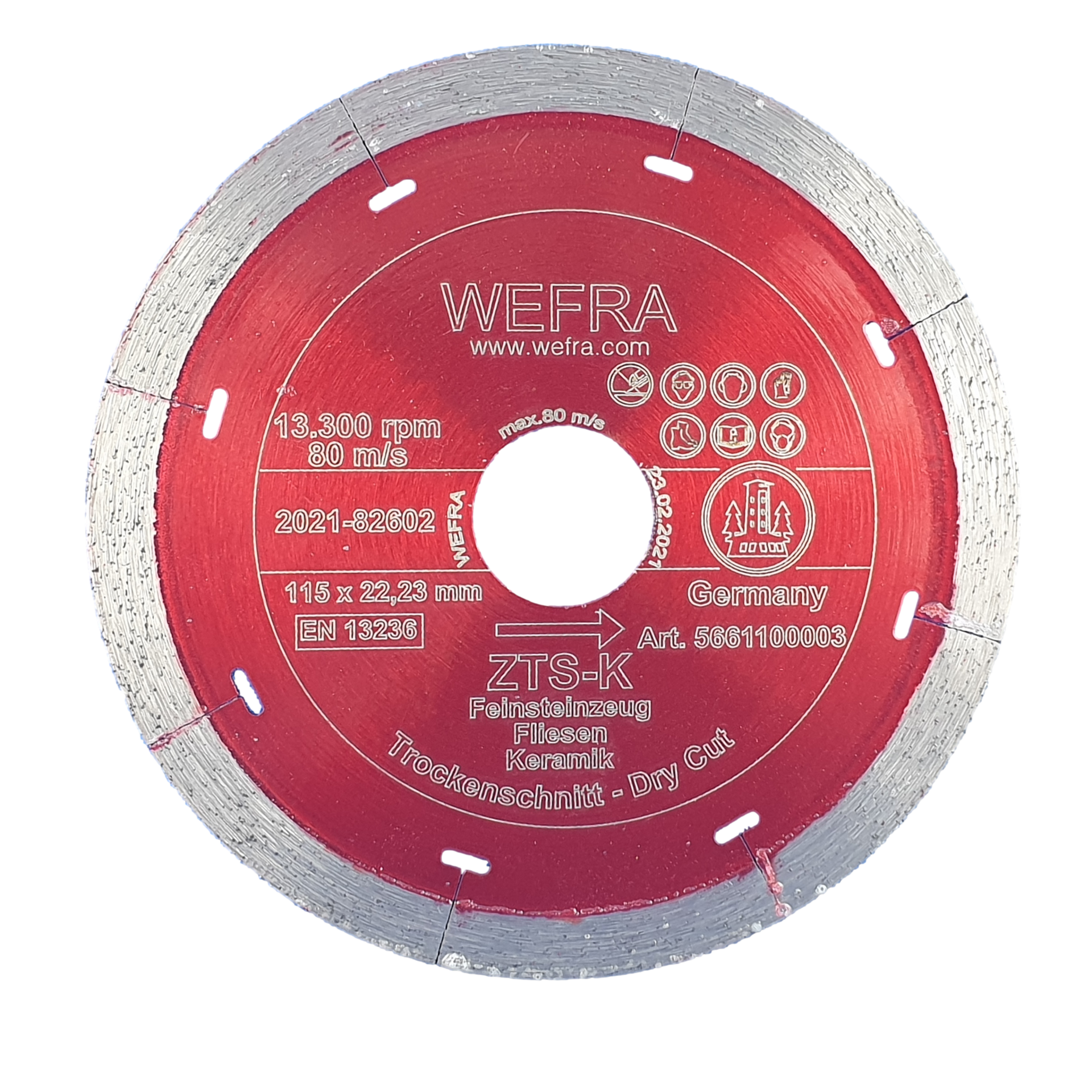

Diamond cutting disc ZTS-K

Specification

The WEFRA ZTS-K is our product with the best price-performance ratio. It cuts tiles and ceramics. The sintered disc features a closed cutting edge and, thanks to its super-thin design (1.3 - 1.4 mm), achieves particularly clean cut edges with a precise cut.

Applications

Tiles, ceramics.

Dimensions/mm

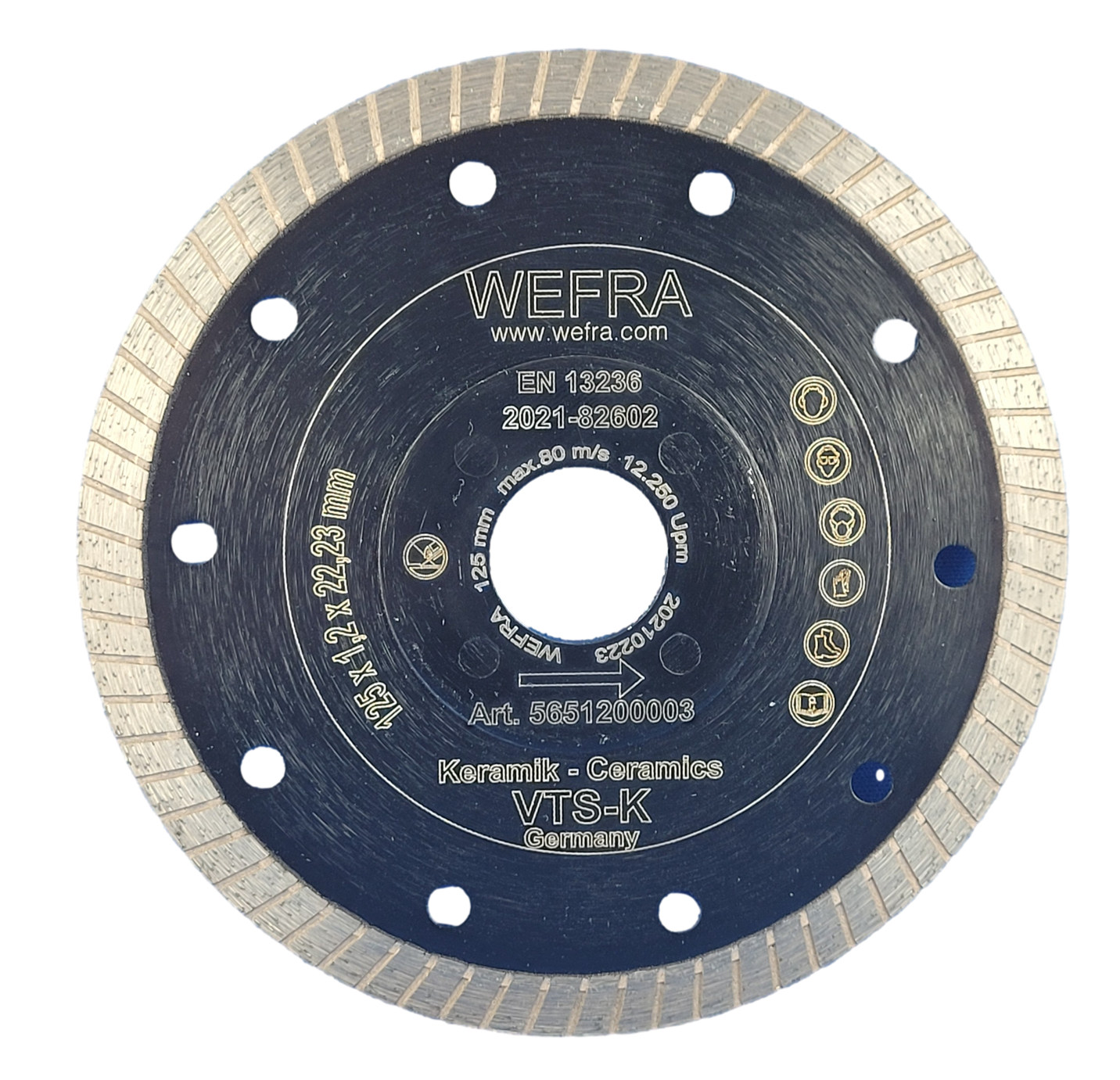

Diamond cutting disc VTS-K TURBO-TYPE

Specification

Our top product for tiles, porcelain stoneware and ceramics. The sintered full-rim disc TURBO-TYPE has a segment height of 7 mm and a thickness of only 1.2 mm. This cutting edge is exceptionally thin, and is resulting in fast, precise and exceptionally clean cut edges. Our premium product is characterized by an extremely long service life, low dust generation, and remarkably quiet operation. WEFRA top quality.

Applications

Tiles, porcelain stoneware and ceramics.

Dimensions/mm

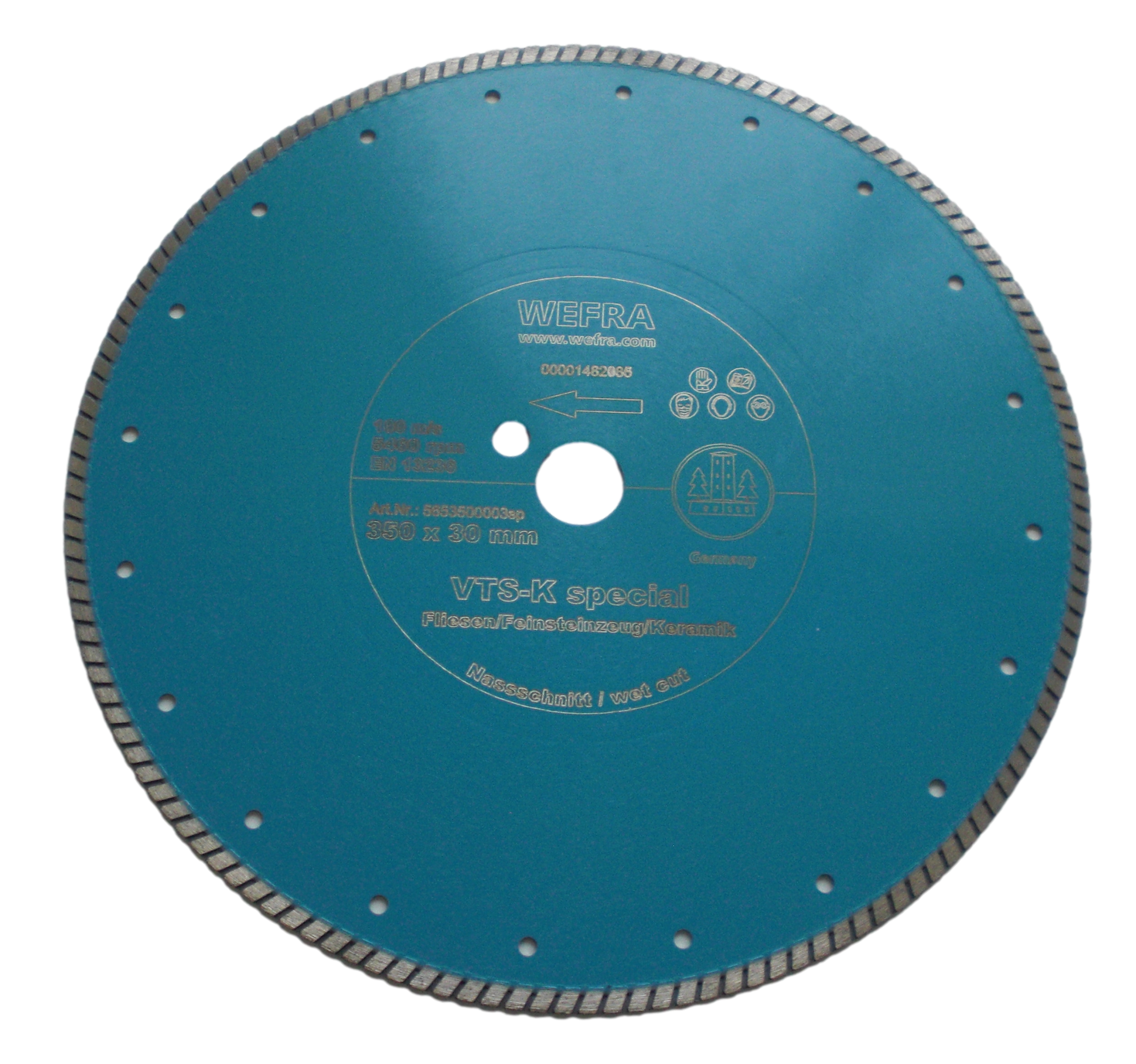

Diamond cutting disc VTS-K TURBO-TYPE

Specification

We supply the TURBO-TYPE Special full-rim cutting disc (sintered) in professional quality for dry and wet cutting. This product cuts tiles, porcelain stoneware, ceramics, granite, and thin natural stone slabs. You get fast and precise cuts with clean edges and a long service life.

Applications

Tiles, porcelain stoneware, ceramics, granites and thin natural stone slabs.

Dimensions/mm

Diamond cutting disc MULTI-STAR

Specification

The high-cutting, vacuum-brazed diamond cutting disc MULTI-STAR is equally suitable for natural and artificial stone, concrete, exposed aggregate concrete, reinforced concrete, concrete pavers, bricks, clinker bricks, granite and sand-lime brick, as well as for various metals such as iron profiles, iron structures, sheets, cast iron, non-ferrous metals, ductile pipes, as well as plastic and fiberglass. Due to the special manufacturing process, the diamonds are applied directly to the core sheet or segments using a vacuum brazing process.

Aapplications

Natural stone, artificial stone, concrete, exposed aggregate concrete, reinforced concrete, concrete paving stones, bricks, clinker bricks, granite, sand-lime brick, iron profiles, iron structures, sheet metal, cast iron, non-ferrous metals, ductile pipes, plastic and fiberglass.

Dimensions/mm

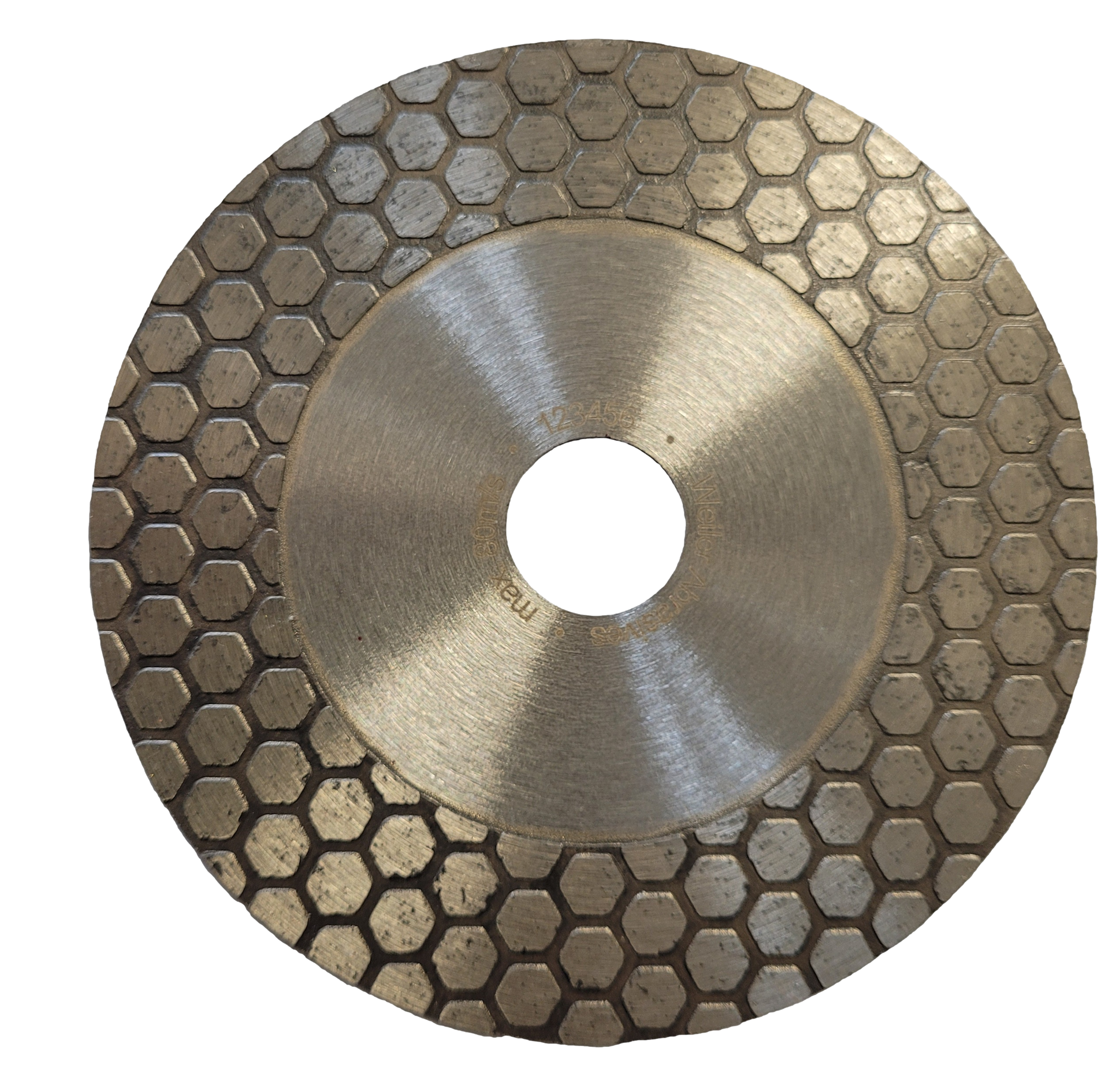

Diamond cutting disc VTJ-K

Specification

The diamond cutting disc VTJ-K is ideally suited for tiles, porcelain stoneware, and ceramics. The sintered full-rim disc from the TURBO-TYPE series is characterized by a fast and precise cut, exceptionally clean cut edges, a long service life, and low dust generation.

Due to the large segmentation on both sides, the disc is ideal for 45° cuts on edges and transitions of tiles and porcelain stoneware.

Applications

Tiles, porcelain stoneware and ceramics.

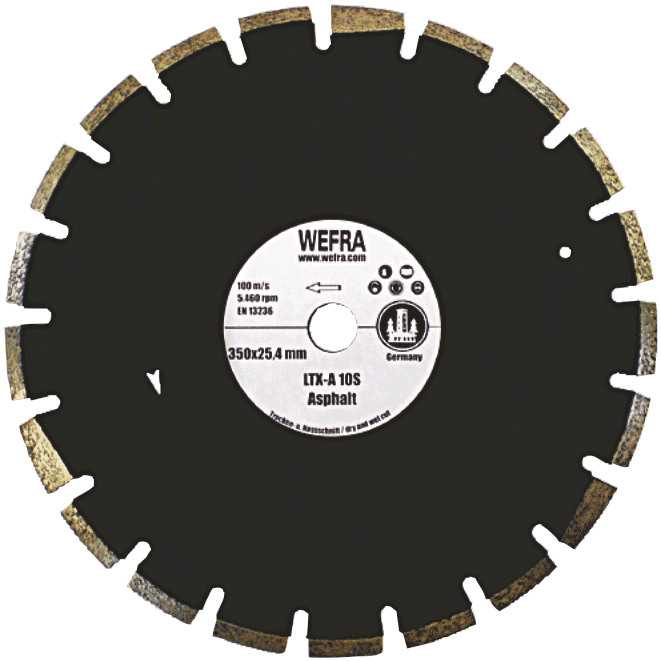

Diamond cutting disc LTX-A 10 S

Specification

The LTX-A 10 S is a segmented, laser-welded diamond cutting disc with good cutting performance and service life. Segment height: 10 mm. The triangular segments for core protection prevent kickbacks of the core blade and thus segment detachment. Excellent price/performance ratio.

Applications

Asphalt, fresh concrete, bituminous ceilings, screed.

Dimensions/mm

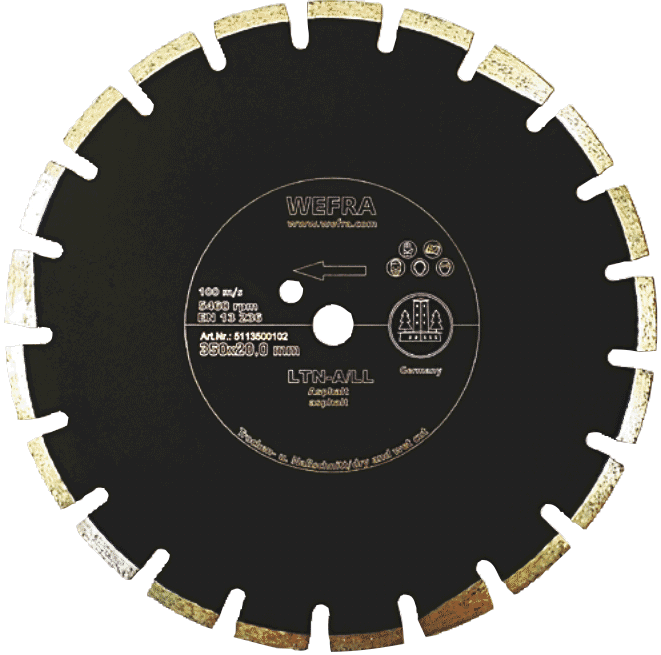

Diamond cutting disc LTN-A/LL

Specification

The LTN-A/LL, with laser-welded segments, a 10 mm coating height, and core protection segments, impresses with its excellent cutting performance and long service life. Proven professional quality.

Applications

Asphalt, including screed and fresh concrete.

Dimensions/mm

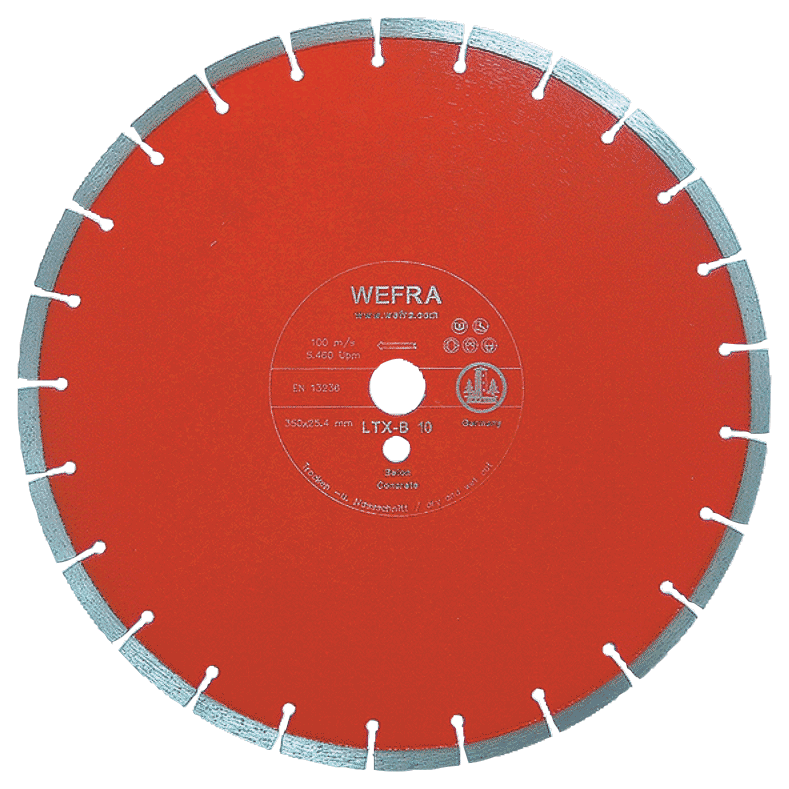

Diamond cutting disc LTX-B 10

Specification

Laser-welded, segmented diamond cutting disc with a coating height of 10 mm. Good cutting performance and service life with an optimal price/performance ratio.

Applications

Old concrete.

Dimensions/mm

Diamond cutting disc LTN-B/LL pro-line

Specification

Laser-welded, segmented diamond cutting disc with a coating height of 10 mm. Excellent cutting performance and long service life in proven professional quality.

Applications

Old concrete, including reinforced concrete up to 8 mm bar thickness, exposed aggregate concrete.

Dimensions/mm

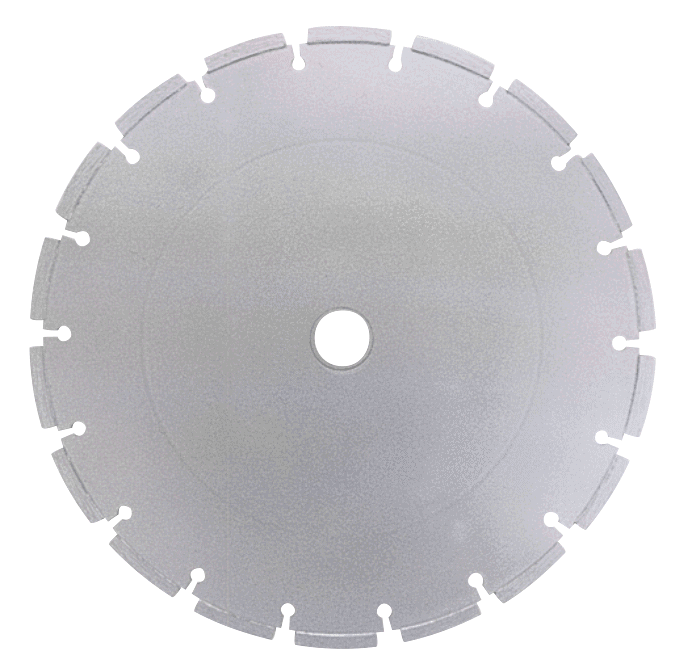

Diamond cutting disc ZNW-S

Specification

Our wide-toothed ZNW-S diamond cutting disc is ideally suited for calcium silicate bricks, soft clinker bricks, fireclay, bricks, poroton blocks, or even unreinforced concrete. It has a segment height of 7 mm and achieves good cutting performance and service life for abrasive materials.

Applications

Calcium silicate brick, soft clinker bricks, fireclay, bricks, poroton, concrete (unreinforced).

Dimensions/mm

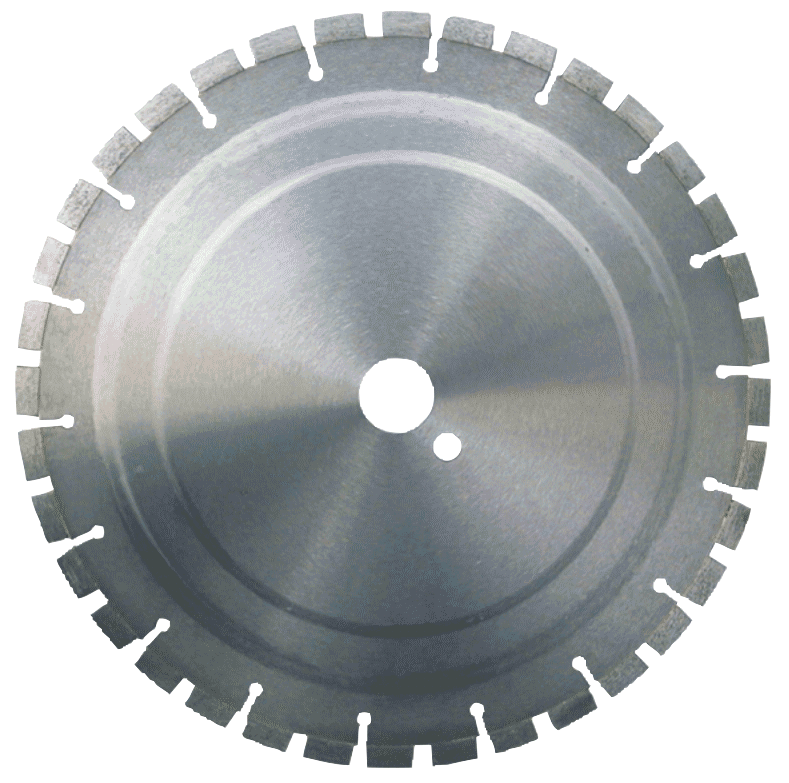

Diamond cutting disc ZNW-W

Specification

For medium-hard building materials such as exposed aggregate concrete, paving stones, and bricks, we suggest the ZNW-W. The double-tooth segments ensure perfect removal of grinding slurry and a fast working speed. The 10 mm pad height results in a significantly longer service life. Proven professional quality.

Applications

Exposed aggregate concrete, interlocking paving stones and bricks.

Dimensions/mm

Diamond cutting disc ZNE-K

Specification

The super-tight toothed and extra-thin special disc (sintered) with a 10 mm coating ensures a fast and precise cut, especially on porcelain stoneware, gress, and ceramic tiles, without chipping. Proven professional quality.

Applications

Porcelain stoneware and ceramic stoneware.

Dimensions/mm

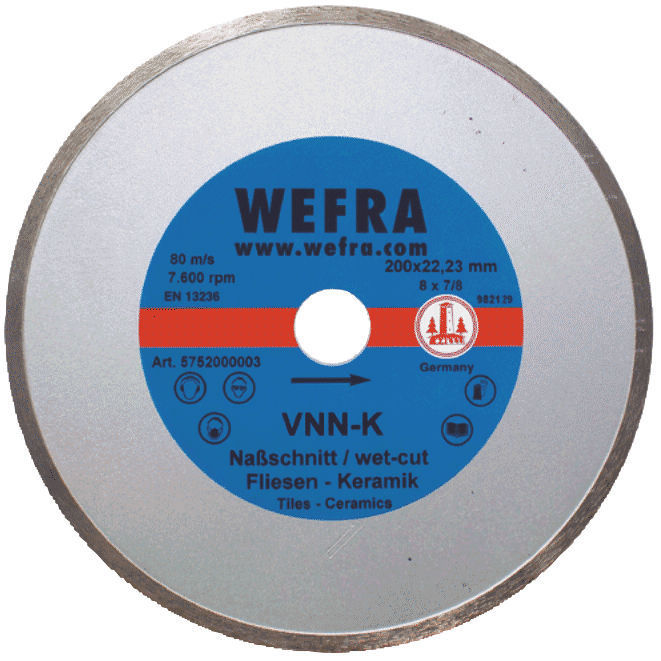

Diamond cutting disc VNN-K

Specification

Our tile cutter with a closed cutting wheel, sintered in a special design, ensures a fast and clean cut with excellent durability. The segment height is 5 mm. Proven professional quality.

Applications

Tiles, ceramics and thin natural stone slabs.

Dimensions/mm

USER INFORMATION

All dry-cutting discs can also be used for wet cutting (not the other way around). This results in a longer disc lifespan. For wet cutting only use approved electrical machines!

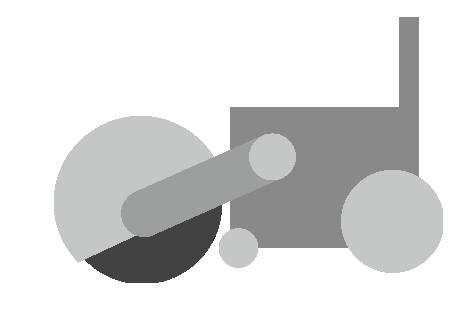

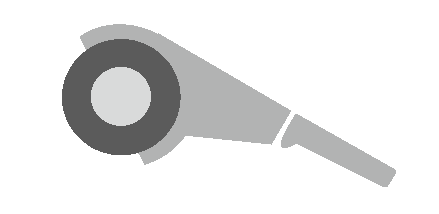

PICTOGRAMS

WEFRA QUALITY LINES

To achieve maximum efficiency, the product should be tailored to your requirements and the grinding process. Therefore, the grinding tool's performance must be selected based on the desired end result. That's why we offer various quality levels with different performance classes. Our eco-line represents the most cost-effective solution for grinding small batches. The profi-line is our all-round specification with an excellent price-performance ratio. The premium-line defines our high-end products, offering the best performance and longest service life.

eco-line

profi-line

premium-line
