Flap grinding pins and flap grinding rolls

Flap or lamellar grinding pins are grinding tools consisting of many small, fan-shaped abrasive flaps mounted around an axis. These flaps are usually made of fleece or linen and coated with abrasive grit. They are used for cleaning, derusting, pre-grinding, texturing, and roughening surfaces, particularly in metalworking.

Flap or lamellar grinding rollers ensure uniform and homogeneous material removal. They are used for deburring or fine grinding of steel, stainless steel, aluminum, and other non-metallic components. The focus is on a conformable grinding finish, achieved through the fabric flap arrangement. Unlike abrasive belts, these flap wheels yield and adapt to workpiece contours. WEFRA flap wheels are distinguished by their quality and durability.

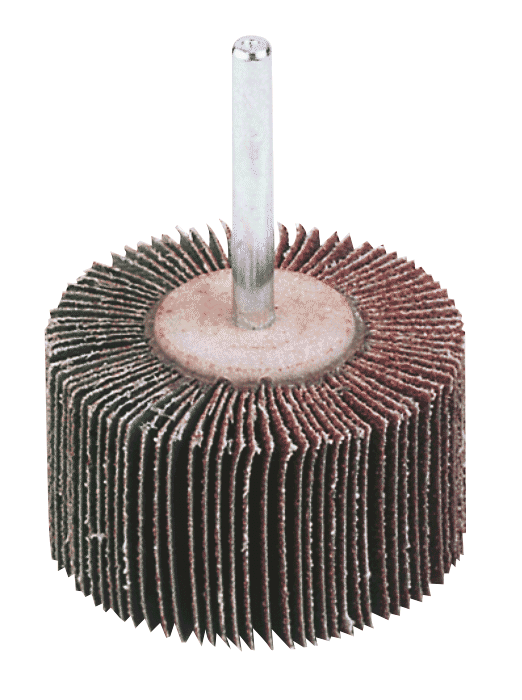

SSL lamellar grinding pin

Specification

Grinding pin made of corundum linen lamellae arranged radially around the core. Through the gradual removal of the backing material, abrasive corundum is repeatedly exposed, resulting in precise material removal right to the end.

Applications

Deburring, cleaning, and preparing metal for post-treatment (e.g., painting) - especially soft metal surfaces, wood, plastics, and marble.

Diameter x Width x Pin/mm

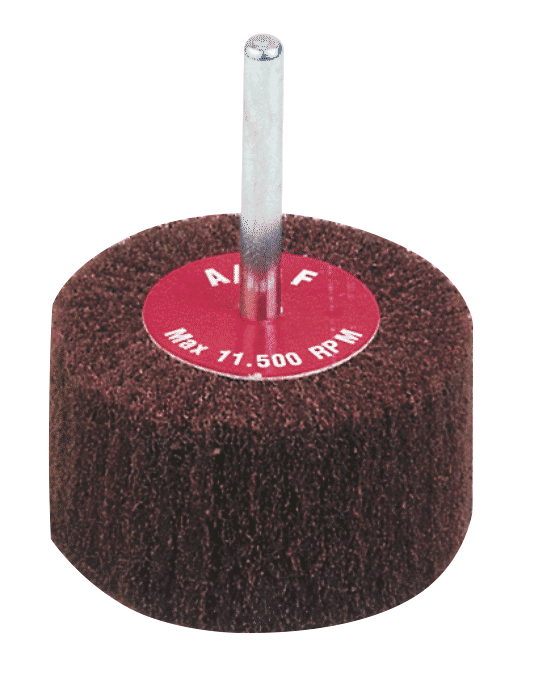

SSV lamellar grinding pins

Specification

Grinding pin made of fleece lamellae arranged radially around the core. Particularly suitable for hard-to-clean surfaces, offering good material removal and a consistent grinding pattern.

Applications

Surface finishing, satin finishing, cleaning and deburring of metal surfaces, preparation for post-treatment (e.g. painting), especially suitable for stainless steel, aluminium, cast iron, plastics.

Diameter x Width x Pin/mm

SWL lamellar grinding roller

Specification

Grinding roller made of 100% corundum linen flaps for aggressive material removal, suitable for larger areas for surface finishing and reworking welds. The SWL flap grinding roller always achieves a consistent grinding pattern.

Applications

Metal, non-ferrous metals, plastics, aluminum, marble.

Diameter x Width x Pin/mm

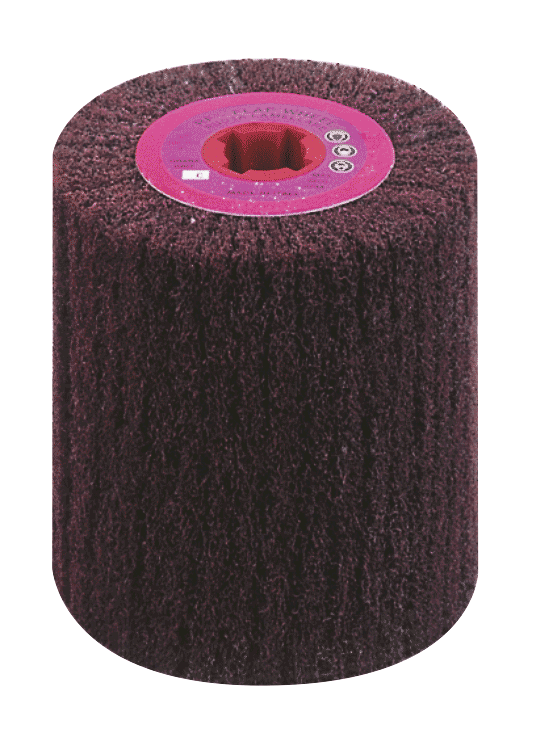

SWV lamellar grinding roller

Specification

Grinding roller made of fleece lamellae arranged radially around the core, suitable for light deburring and cleaning, matting and satin finishing. The SWV lamella grinding roller always achieves a consistent sanding pattern.

Applications

Final grinding of metal, especially suitable for stainless steel, non-ferrous metals, cast iron or plastic.

Diameter x Width x Pin/mm

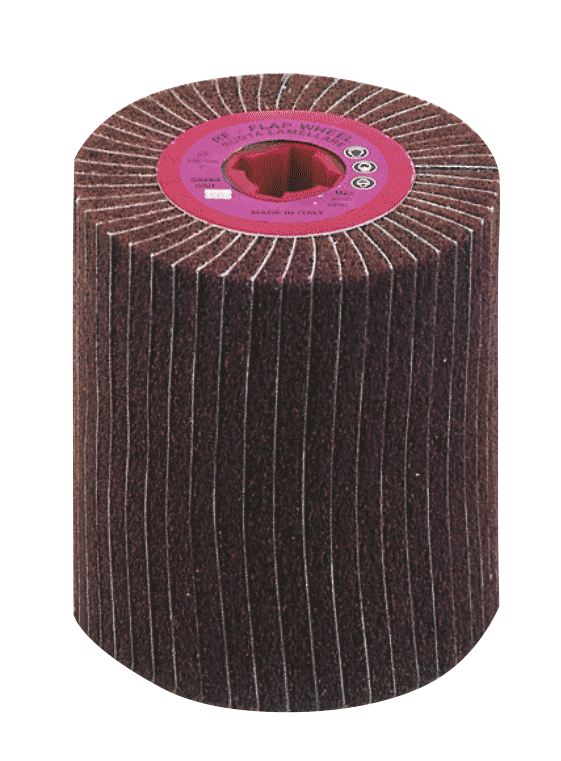

Flap grinding roller SWLV

Specification

Combined grinding roller, alternately fitted with corundum linen lamellae and fleece. Particularly suitable for satin finishing work with pronounced contours.

Applications

Final grinding of metal, non-ferrous metals, cast iron.

Diameter x Width x Pin/mm

PICTOGRAMS

WEFRA QUALITY LINES

To achieve maximum efficiency, the product should be tailored to your requirements and the grinding process. Therefore, the grinding tool's performance must be selected based on the desired end result. That's why we offer various quality levels with different performance classes. Our eco-line represents the most cost-effective solution for grinding small batches. The profi-line is our all-round specification with an excellent price-performance ratio. The premium-line defines our high-end products, offering the best performance and longest service life.

eco-line

profi-line

premium-line
