FIBER DISCS AND FIBER DISC PLATES
HIGH-PERFORMANCE ABRASIVES
Fiber discs

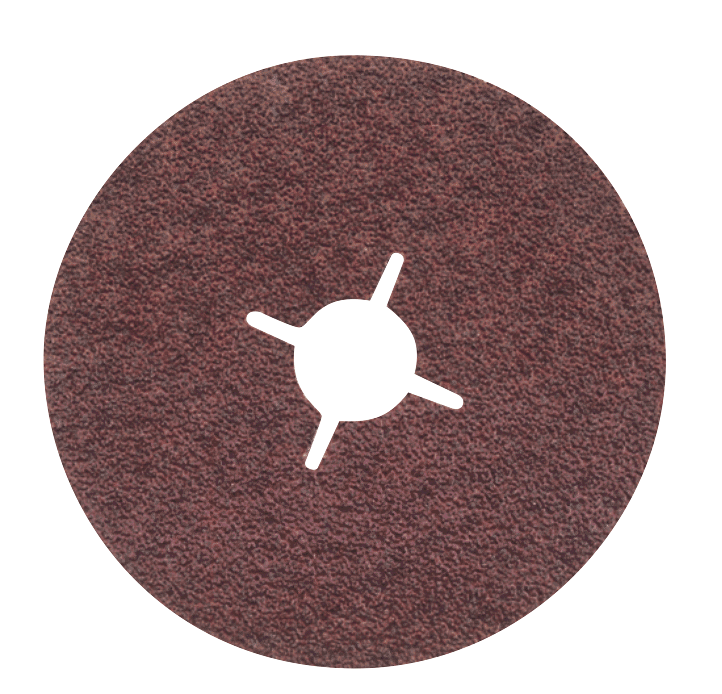

Fiber disc F-A
Specification
Fiber discs with cross slot, normal corundum, stable vulcanized fiber backing, full resin bond, high grinding performance and long service life.
Use only with a backing plate!
Applications
Suitable for metalworking, depending on the grit size, for rough or fine work, for deburring and cleaning weld seams.
Dimensions/mm
115 x 22
125 x 22
178 x 22
Grain sizes
A16, 24, 36 40, 60, 80, 100, 120
A16, 24, 36 40, 60, 80, 100, 120
A16, 24, 36 40, 60, 80, 120
RPM
13.200
12.200
8.600
PU
50 pieces per size

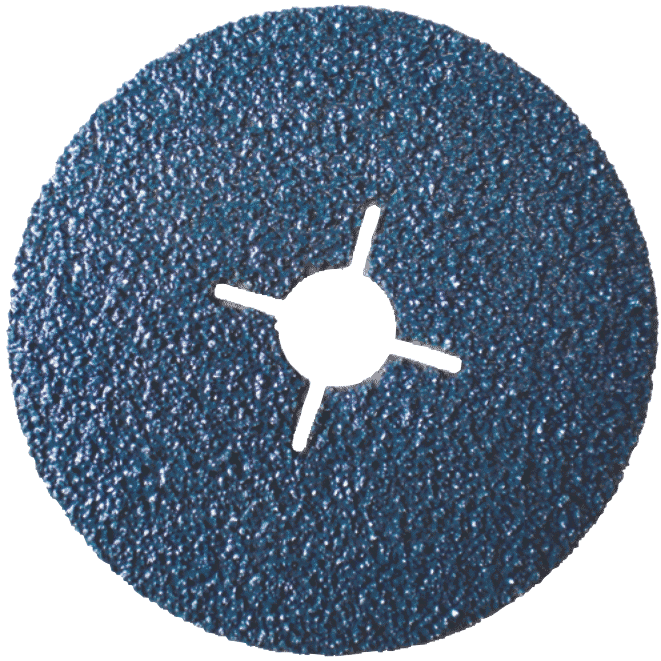

Fiber disc FZ
Specification
Fiber discs with zirconium corundum, stable vulcanized fiber backing, full resin bonding, high grinding performance and very good service life.
Use only with a backing plate!
Applications
Stainless steel, metalworking, steel.
Dimensions/mm
125 x 22
Grain sizes
Z24, Z36, Z40, Z60, Z80, Z120
RPM
12.200
PU
50 pieces
Ceramic Fiber disc F-K24
Specification
Ceramic grain on a vulcanized fiber backing, resin-bonded. With hole and cross-slot shank. High material removal rate, low grinding temperature, sharp abrasive grain. High cost-effectiveness and long service life.
Only to be used with suitable backing plates. Optimal with Turbo-Tasse FG-Turbo.
Applications
Steel, weld finishing, rough grinding of castings, deburring of hard metal steel, removal of rust and scale. For stainless and acid-resistant steels. For titanium, nickel- and cobalt-based alloys.
Dimensions/mm
115 x 22
125 x 22
178 x 22
RPM
13.200
12.200
8.600
VPE
50 pieces per size
Ceramic fiber disc F-K36-AF890 / F-K36-AF799
Specification
Maximum material removal, reduced operating costs, and increased productivity. Cool grinding and extended tool life thanks to the top size coating. Geometrically shaped ceramic abrasive grains ensure maximum material removal, wear down in a controlled manner, and thus consistently produce sharp cutting edges.
Use only with a backing plate!
Applications
Metalworking, depending on the grit size for rough or fine work, for deburring and cleaning weld seams.
Dimensions/mm
125 x 22
180 x 22
RPM
12.200
8.600
PU
50 pieces per size
USER INFORMATION
Ceramic fiber discs with ACTIROX.
ACTIROX stands for geometrically shaped ceramic abrasive grains with maximum material removal rate. The aggressive cutting action, combined with low pressure, generates less noise and vibration, thus reducing strain on both operator and machine. The faster grinding speed significantly reduces processing time. – Benefit from the superior performance of ACTIROX abrasives in your grinding process.
(Image: VSM-ACTIROX landscape)

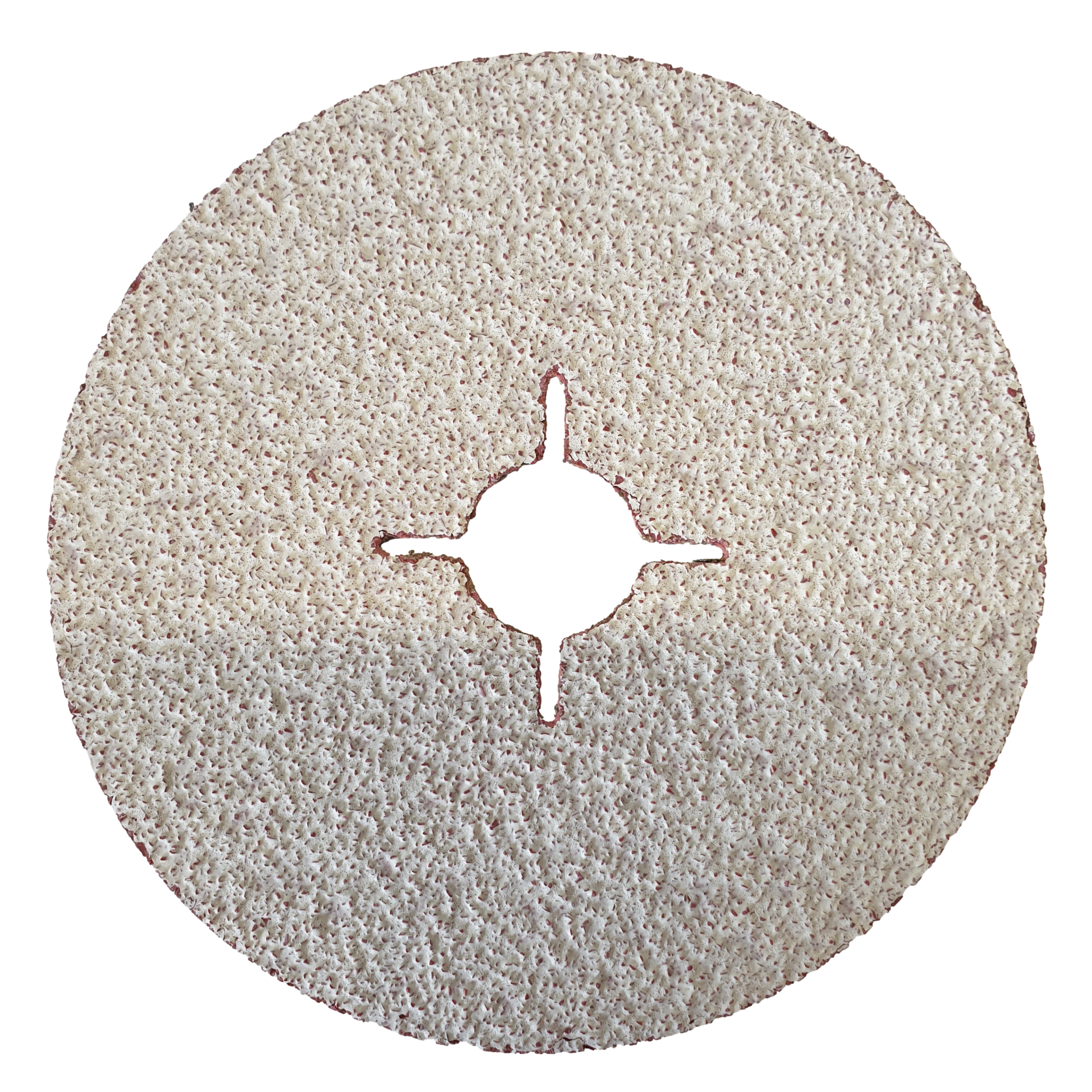

Ceramic fiber disc F-K36-XF733
Specification
Stearate Plus for aluminum and non-ferrous metals. Double the material removal rate and double the service life significantly reduces chip adhesion and clogging of the abrasive.
Use only with a backing plate!
Applications
Aluminium and non-ferrous metals.
Dimensions/mm
125 x 22
RPM
12.200
PU
50 pieces

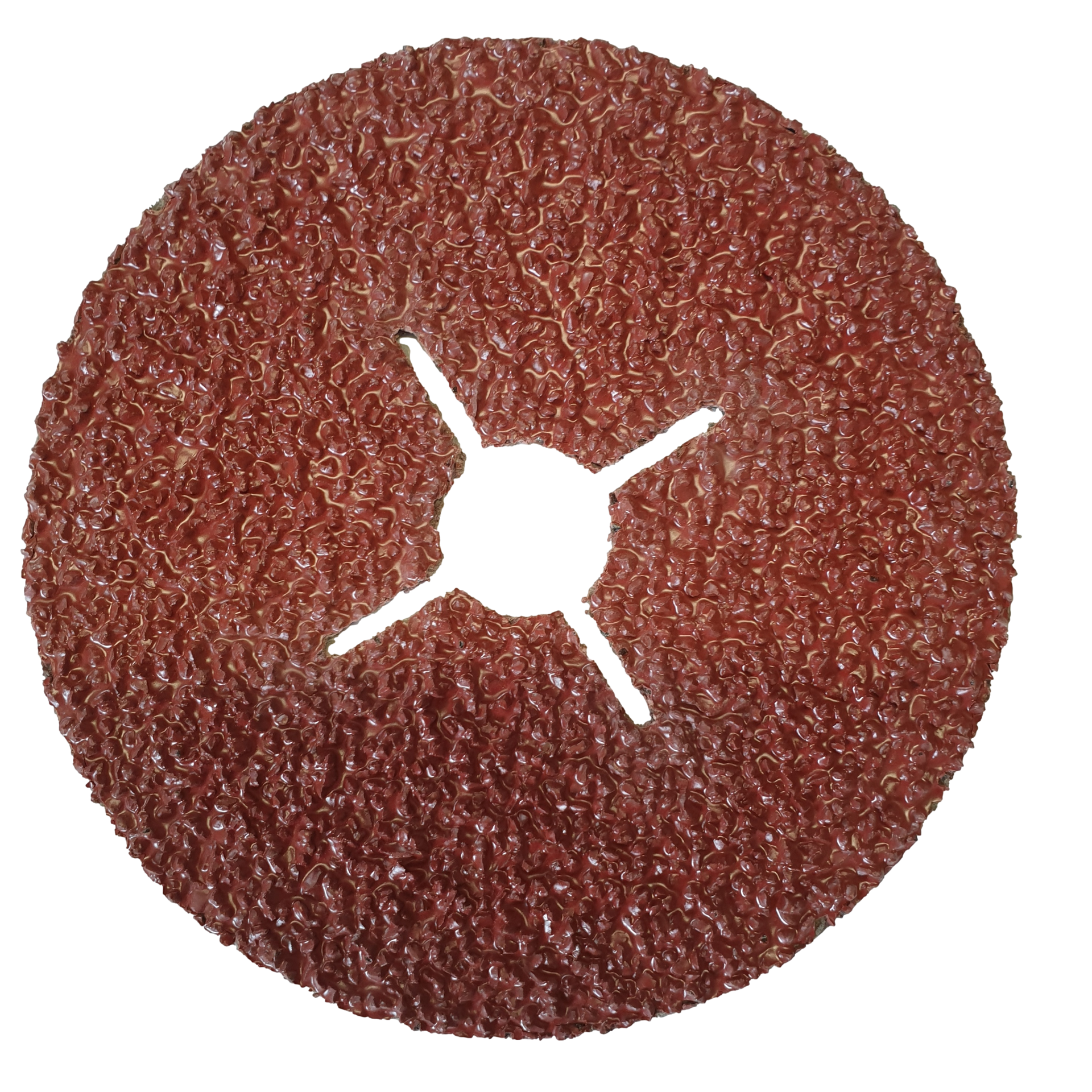

Ceramic fiber disc F-K20-XF885
Specification
Stearat Plus for aluminum and non-ferrous metals. Optimized for machining superalloys, stainless steels and aluminum, it impresses with its aggressive yet cool cutting action and very long tool life.
Use only with a backing plate!
Applications
Aluminium and non-ferrous metals.
Dimensions/mm
125 x 22
180 x 22
RPM
12.200
8.600
PU
50 pieces per size
Backing plate FG
Specification
Backing plate including clamping nut, heavy-duty, elastic, wear-resistant, also suitable for fiber-flex plates.
Excellent value for money.
Dimensions/mm
Ø 115 mm x M14
Ø 125 mm x M14
Ø 178 mm x M14
PU
5 pieces per size

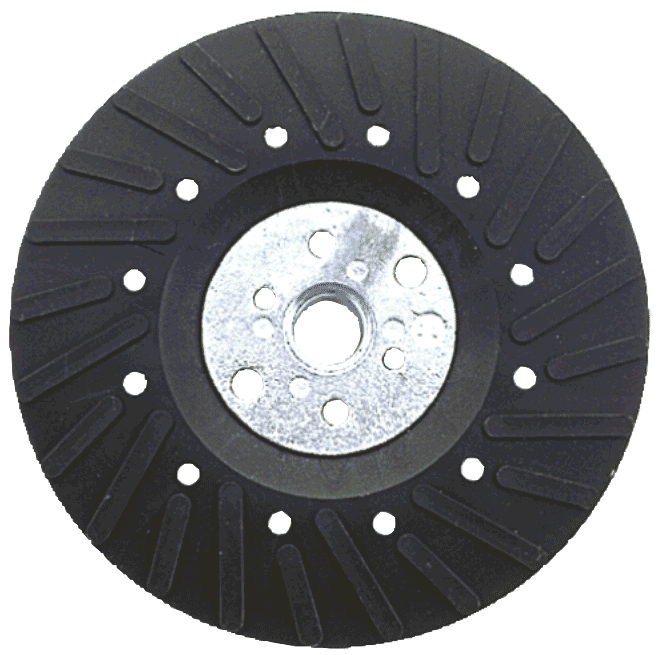

FG-Turbo backing plate
Specification
Solid high-performance TURBO plate with cooling fins, including clamping nut, long service life, for robust work.
Dimensions/mm
Ø 115 mm x M14
Ø 125 mm x M14
Ø 178 mm x M14
PU
5 pieces per size

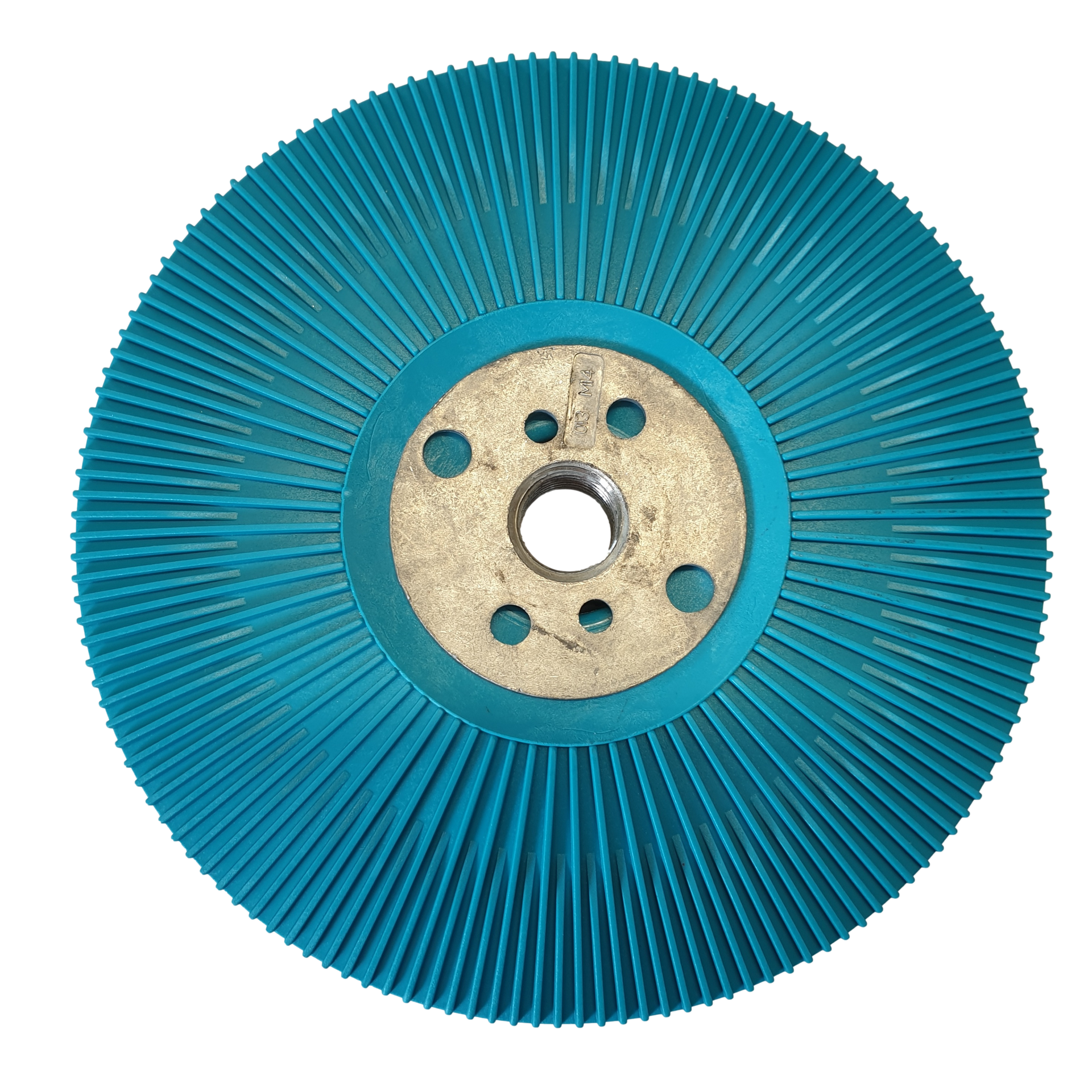

Backing plate FG-Turbo "PAD 3"
Specification
Cooling fins reduce heat generated during grinding. The cooler grinding action extends the service life of the abrasive. Significant performance increase and maximum material removal.
Dimensions/mm
Ø 125 mm x M14
PU
1 piece
PICTOGRAMS
WEFRA QUALITY LINES
To achieve maximum efficiency, the product should be tailored to your requirements and the grinding process. Therefore, the grinding tool's performance must be selected based on the desired end result. That's why we offer various quality levels with different performance classes. Our eco-line represents the most cost-effective solution for grinding small batches. The profi-line is our all-round specification with an excellent price-performance ratio. The premium-line defines our high-end products, offering the best performance and longest service life.
eco-line
profi-line
premium-line
